Kern & Sohn

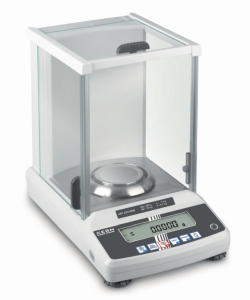

Balances, electronic, analytical, ABT series

Analytical and semi-microbalances which are suitable for verification.
All models have automatic calibration adjustment function by internal, motor-driven, calibration weight. It is possible to log ISO / GLP-compliant weighing or calibration data at any time via an accessory printer (not supplied) or data interface (bi-directional RS232-C).
Additionally, the balances have formulation, piece counting and percentage determination functions, as well as a flush-mounted weighing platform. All models are supplied with a modern, all-glass draught shield with sliding doors to the left, right and top.
Also available with DKD certified, ionizer, thermal printer, statistic printer at additional cost.

Single-cell advanced technology:
  • Fully automatic manufactured weighing cell from one piece of material
  • Stable temperature behavior
  • Short stabilisation time: Steady weight values within approx. 4 sec under laboratory conditions
  • Shock proof construction
  • High corner load performance
Verified calibration:Verifiable
Adjusting program:Internal
Weighing plate (WxD):Ø 80 mm
Dimensions (WxDxH):217 x 356 x 338 mm
Weight:7.0 kg
Plug type:EU/CH/UK/US
Power supply:220 V
Balances, electronic, analytical, ABT series





Balances, electronic, analytical, ABT series
TypeMax. load
g
Readability
mg
Reproducibility
mg
LinearityPKCat. No.
ABT 320-4NM3200,10,1±0,3 mg19900957
ABT 100-5NM1010,010,05±0,15 mg16241274
ABT 120-5DNM42/1200,01/0,10,02/0,1±0,05/0,2 mg19900958
ABT 220-5DNM82/2200,01/0,10,05/0,1±0,1/0,2 mg19900959
Alternate products:
Analytical balance ABP / Kern & Sohn
