Hirschmann Laborgeräte

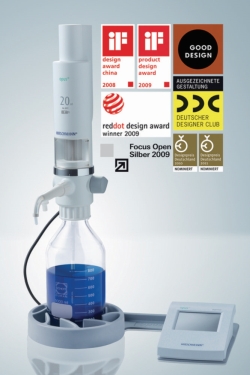

Bottle-top dispenser opus® dispenser

opus® dispenser for motor-powered dispensing directly from the reagent bottle. In conjunction with the "dispenser" touch screen containing the complete electronic control, it represents an extremely sensitive precision dispensing instrument that guarantees excellent degrees of accuracy (e.g. during serial dispensing). With USB interface for linking to a PC.

Outstanding features:
  • Simple menu-guided user instructions with tab cards on an external coloured TFT touch screen. Screen legibility is also guaranteed in even strong daylight
  • Versatile application options, thanks to superior quality materials (ECTFE, DURAN glass, FEP); media-conveying components are suitable for steam sterilisation (121 °C)
  • Configuration of up to 9999 dispensing repetitions possible, intervals of up to 9999 seconds can be selected between individual dispensing operations
  • Stepper function: Dispensing of several volume dosages (differing volumes possible) from a single cylinder charge (10 ml, 20 ml or 50 ml)
  • Individual problem-free calibration options
  • Individual adaptation options, e.g. language selection (DE, UK, FR, ES), specification of charging and dispensing velocity in ml/sec (option for coordination with medium viscosity)
  • Method memory, capacity for up to 9 different settings (e.g. volume, velocity, cycle duration, etc.).
  • Accessories: pedal switch for triggering dispensing, USB interface connection cable 750, 2000 or 5000 mm long touch screen connection cable, special lengths available, silicone system platform with bottle holder, batteries available for selective battery operation
  • Discharge valves and valve seats consisting of high-purity aluminium oxide ceramic
  • Saving of last setting ensures speedy further processing when the instrument is reactivated
  • Declaration of conformity acc. to DIN 12600
  • Quality assurance in compliance with DIN EN ISO 8655


Supplied with: opus® dispenser, complete with thread A 45 mm, 3 adapters (A 32, A 38 and S 40 Merck bottles), 1 screw coupled suction tube, 1 dispensing discharge unit and 1 power supply, 1 brown light protection window, touch screen module "dispenser", Data Power Cable 0.75 m, instruction manual, single calibration report
Power supply:100 ... 240 V
Bottle-top dispenser opus® dispenser


Bottle-top dispenser opus® dispenser
Dosing volumeAccuracy
± R%
Plug typePKCat. No.
10 ml0.6EU/UK/US19287874
20 ml0.6EU/UK/US19287872
50 ml0.6EU/UK/US19287873
Accessories:
Bottle holder for bottle-top dispensers and digital burettes / Hirschmann Laborgeräte
System platform for bottle-top dispensers and digital burettes opus® / Hirschmann Laborgeräte
Recirculation tubes, FEP, for bottle-top dispensers and digital burettes / Hirschmann Laborgeräte
Recirculation valves for bottle-top dispensers and digital burettes / Hirschmann Laborgeräte
Titration mouse for bottle-top dispensers and digital burettes opus® / Hirschmann Laborgeräte
Adapter with filling tube NS 12/21 for bottle-top dispensers and digital burettes / Hirschmann Laborgeräte
Suction tubes, FEP, for bottle-top dispensers and digital burettes / Hirschmann Laborgeräte
Suction valves for bottle-top dispensers and digital burettes / Hirschmann Laborgeräte
Discharge tube units, continuous tube guide, for bottle-top dispensers and digital burettes / Hirschmann Laborgeräte
Discharge tube units, flexible, for bottle-top dispensers and digital burettes / Hirschmann Laborgeräte
Discharge tube units, Luer-Lock connection, for bottle-top dispensers and digital burettes / Hirschmann Laborgeräte
Discharge valves for bottle-top dispensers and digital burettes / Hirschmann Laborgeräte
Replacement cylinders for bottle-top dispensers and digital burettes / Hirschmann Laborgeräte
Thread adapters for bottle-top dispensers and digital burettes / Hirschmann Laborgeräte
Cables for bottle-top dispensers and digital burettes / Hirschmann Laborgeräte
Power supply for pipette controller pipetus®, bottle-top dispensers and digital burettes opus® / Hirschma
Hand switch for bottle-top dispenser opus® dispenser / Hirschmann Laborgeräte
Foot switch for bottle-top dispenser opus® dispenser / Hirschmann Laborgeräte
Valve mounting spanner for bottle-top dispensers and digital burettes / Hirschmann Laborgeräte
Light protection window for bottle-top dispensers and digital burettes / Hirschmann Laborgeräte
Amber glass bottles for bottle-top dispensers and digital burettes, square / Hirschmann Laborgeräte
Amber glass bottles for bottle-top dispensers and digital burettes, round / Hirschmann Laborgeräte
