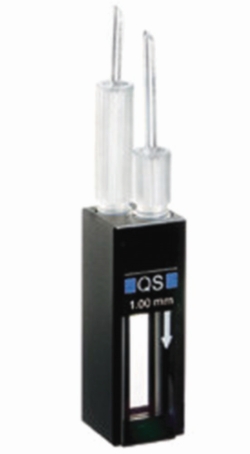

Cells for absorption measurement, flow-through measurement, UV-range, 2 screw terminals

M 6 x 1 and FEP tubes (outside diameter 1.9 mm, inner diameter 1.1 mm, length 500 mm).


Cells for absorption measurement, flow-through measurement, UV-range, 2 screw terminals

Wavelength nm	Path length mm	Centre height mm	Int. width mm	Capacity	Material	Ext. dim. (WxDxH)	Type of cuvette	PK	Cat. No.
200...2500	5	15	3.5	195 µl	Quartz glass	12.5 x 12.5 x 35 mm	Semi-Micro	1	6059697
200...2500	10	15	3.5	390 µl	Quartz glass	12.5 x 12.5 x 35 mm	Semi-Micro	1	9144667
200...2500	10	8.5	3.5	390 µl	Quartz glass	12.5 x 12.5 x 35 mm	Semi-Micro	1	9144666
200...2500	50	15	3.5	1,950 µl	Quartz glass	12.5 x 52.5 x 35 mm	Semi-Micro	1	6231336
200...2500	10	15	3	80 µl	Quartz glass	12.5 x 12.5 x 35 mm	Micro	1	6300086
200...2500	10	8.5	3	80 µl	Quartz glass	12.5 x 12.5 x 35 mm	Micro	1	7601951
320...2500	10	8.5	2	30 µl	Special optical glass	12.5 x 12.5 x 35 mm		1	6320154
320...2500	10	8.5	1.5	18 µl	Special optical glass	12.5 x 12.5 x 35 mm		1	9144672
200...2500	0,1		3.5	6 µl	Quartz glass	12.5 x 12.5 x 35 mm	Micro	1	9144660
200...2500	0,2		3.5	12 µl	Quartz glass	12.5 x 12.5 x 35 mm	Micro	1	6206587
200...2500	0,5		3.5	31 µl	Quartz glass	12.5 x 12.5 x 35 mm	Micro	1	9144662
200...2500	1		3.5	62 µl	Quartz glass	12.5 x 12.5 x 35 mm	Micro	1	9144664
200...2500	2		3.5	124 µl	Quartz glass	12.5 x 12.5 x 35 mm	Micro	1	9144663

Wavelength 200...2500nm

Path length 5mm

Centre height 15mm

Int. width 3.5mm

Capacity 195 µl

Material Quartz glass

Ext. dim. 12.5 x 12.5 x 35 mm(WxDxH)

Type of cuvette Semi-Micro

Cat. No. 6.059 697

Wavelength 200...2500nm

Path length 10mm

Centre height 15mm

Int. width 3.5mm

Capacity 390 µl

Material Quartz glass

Ext. dim. 12.5 x 12.5 x 35 mm(WxDxH)

Type of cuvette Semi-Micro

Cat. No. 9.144 667

Wavelength 200...2500nm

Path length 10mm

Centre height 8.5mm

Int. width 3.5mm

Capacity 390 µl

Material Quartz glass

Ext. dim. 12.5 x 12.5 x 35 mm(WxDxH)

Type of cuvette Semi-Micro

Cat. No. 9.144 666

Wavelength 200...2500nm

Path length 50mm

Centre height 15mm

Int. width 3.5mm

Capacity 1,950 µl

Material Quartz glass

Ext. dim. 12.5 x 52.5 x 35 mm(WxDxH)

Type of cuvette Semi-Micro

Cat. No. 6.231 336

Wavelength 200...2500nm

Path length 10mm

Centre height 15mm

Int. width 3mm

Capacity 80 µl

Material Quartz glass

Ext. dim. 12.5 x 12.5 x 35 mm(WxDxH)

Type of cuvette Micro

Cat. No. 6.300 086

Wavelength 200...2500nm

Path length 10mm

Centre height 8.5mm

Int. width 3mm

Capacity 80 µl

Material Quartz glass

Ext. dim. 12.5 x 12.5 x 35 mm(WxDxH)

Type of cuvette Micro

Cat. No. 7.601 951

Wavelength 320...2500nm

Path length 10mm

Centre height 8.5mm

Int. width 2mm

Capacity 30 µl

Material Special optical glass

Ext. dim. 12.5 x 12.5 x 35 mm(WxDxH)

Type of cuvette

Cat. No. 6.320 154

Wavelength 320...2500nm

Path length 10mm

Centre height 8.5mm

Int. width 1.5mm

Capacity 18 µl

Material Special optical glass

Ext. dim. 12.5 x 12.5 x 35 mm(WxDxH)

Type of cuvette

Cat. No. 9.144 672

Wavelength 200...2500nm

Path length 0,1mm

Centre height mm

Int. width 3.5mm

Capacity 6 µl

Material Quartz glass

Ext. dim. 12.5 x 12.5 x 35 mm(WxDxH)

Type of cuvette Micro

Cat. No. 9.144 660

Wavelength 200...2500nm

Path length 0,2mm

Centre height mm

Int. width 3.5mm

Capacity 12 µl

Material Quartz glass

Ext. dim. 12.5 x 12.5 x 35 mm(WxDxH)

Type of cuvette Micro

Cat. No. 6.206 587

Wavelength 200...2500nm

Path length 0,5mm

Centre height mm

Int. width 3.5mm

Capacity 31 µl

Material Quartz glass

Ext. dim. 12.5 x 12.5 x 35 mm(WxDxH)

Type of cuvette Micro

Cat. No. 9.144 662

Wavelength 200...2500nm

Path length 1mm

Centre height mm

Int. width 3.5mm

Capacity 62 µl

Material Quartz glass

Ext. dim. 12.5 x 12.5 x 35 mm(WxDxH)

Type of cuvette Micro

Cat. No. 9.144 664

Wavelength 200...2500nm

Path length 2mm

Centre height mm

Int. width 3.5mm

Capacity 124 µl

Material Quartz glass

Ext. dim. 12.5 x 12.5 x 35 mm(WxDxH)

Type of cuvette Micro

Cat. No. 9.144 663

Cells for absorption measurement, flow-through measurement, UV-range, 2 screw terminalsManufacturers:Hellma GmbH & Co. KGE-Classes:UN/SPSC:Alternate products:
