A. Krüss Optronic

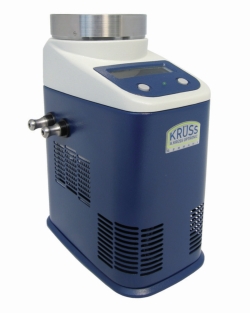

Circulation thermostat PT31

The PT31 circulation thermostat is equipped with high performance functions. The device is ideally suited for applications requiring a temperature range at a constant level. The robust locking mechanism of the PT31 provides a sturdy connection and ensures constant temperature control of the medium.
  • Temperature control using Peltier technology
  • Space-saving, sturdy design
  • Suitable for operation with non-flammable liquids (water or water/glycol mixture)
Max. delivery pressure:20 mbar
Type of display:LCD
Cooling capacity at 20 °C:20 W
Heating capacity:30 W
Ext. dim. (WxDxH):108 x 145 x 199 mm
Power supply:100 ... 240 V, 50/60 Hz
Weight:1.5 kg
IP code:IP 21
Circulation thermostat PT31


Circulation thermostat PT31
TypeTemperatureMax. flow rate
l/h
PKCat. No.
PT318 ... 35 °C2019841515
