BINDER

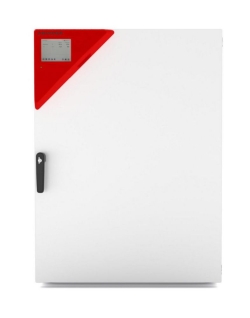

CO2 incubators CBF-OZ, with cell therapy compartmentalization, humidity and O2 control

Suitable for routine cell cultivation applications and incubation tasks, also for complex approaches under hypoxic conditions. Models with additional O2 control are available.

  • Anti-contamination concept with 180 °C hot air sterilization
  • CO2 sensor with single-beam infrared technology
  • Seamless inner chamber made of stainless steel
  • Fanless interior with Venturi CO2 gas mixing nozzle
  • Internal data logger, measured values can be read out via USB
  • Troubleshooting system with visual and acoustic alarms
  • Interfaces: Ethernet, USB, zero-voltage alarm contact
  • Contamination-safe humidification system without water pan
  • Touchscreen controller
  • Fail-safe CO2 system for protecting the pH of cell cultures
  • Inner door divided into 8 parts with cell therapy compartmentalization
  • Stainless steel inner door with 8 separate glass doors
  • 4 shelf levels with 8 inserts
  • Individual inserts can be pulled out completely
  • Each level is physically separated by an additional partition wall
Temperature stability:±0,1 K
CO2 range:0 ... 20 %
O2:0.2 ... 20 %
Relative humidity:50 ... 95 %
Max. no. of inserts:8
Material interior:Stainless steel
Ext. dim. (WxDxH):740 x 785 x 1,020 mm
Int. Dim. (WxDxH):620 x 575 x 750 mm
Weight:125 kg
Rated capacity:1.50 kW
CO2 incubators CBF-OZ, with cell therapy compartmentalization, humidity and O2 control




CO2 incubators CBF-OZ, with cell therapy compartmentalization, humidity and O2 control
TypeNominal capacity
l
TemperaturePlug typePower supplyPKCat. No.
CBF260-OZ267RT+6 ... 60 °CEU200 ... 230 V, 50/60 Hz14684787
CBF260UL-OZ267RT+6 ... 60 °CUS100 ... 120 V, 50/60 Hz14684788
Accessories:
Shelves for CO2 incubators CB / BINDER
Stacking adapters for CO2 incubators CB series / BINDER
Stacking frames for CO2 incubators CB series / BINDER
Base frames for CO2 incubators CB series / BINDER
Divided inner doors for CO2 incubators CB / CBF / BINDER
Quick sample access for CO2 incubators CB / CBF / BINDER
Door hinge on the left for CO2 incubators CB series / BINDER
Access port with silicone plug for CO2 incubators CB series / BINDER
Shelves for CO2 incubators CB with divided inner door / BINDER
