KGW Schieder

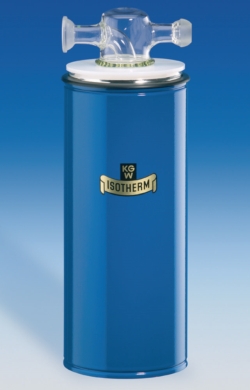

Cold traps with Dewar flask, borosilicate glass 3.3, one-piece, standard version

One-piece cold trap with matching Dewar flask made of borosilicate glass 3.3 for vacuum applications. Ideal for condensing out moisture or solvents. The Dewar flasks are vacuum-insulated, silver-plated and have a blue-coated metal protective jacket with a support ring into which the cold trap is hung.
Versions of the cold trap connections:
  • S 29 = spherical ground joint S 29
  • O 29 = spherical ground joint S 29 with O-ring seal
  • GL 18 = glass thread GL 18 with PTFE olive Ø 10 mm


Scope of supply: Cold trap, support ring, Dewar flask type 12 C

The standard assembly is designed for use with LN2 as coolant. When using CO2 and acetone please order CO2 wire basket separately.
Cold traps with Dewar flask, borosilicate glass 3.3, one-piece, standard version


Cold traps with Dewar flask, borosilicate glass 3.3, one-piece, standard version
TypeCondensate
capacity
ml
Coolant
capacity
ml
Cold trap
joints
Dewar
type
PKCat. No.
KF 29-K1501000S 2912 C19032065
KF 29-OK1501000O 2912 C19032066
KF 29-GL1501000GL 1812 C19032067
Accessories:
CO2 wire baskets for cold traps with Dewar flask / KGW Schieder
Spare cold traps for cold traps with Dewar flask, borosilicate glass 3.3, one-piece / KGW Schieder
