Lenz-Laborglas

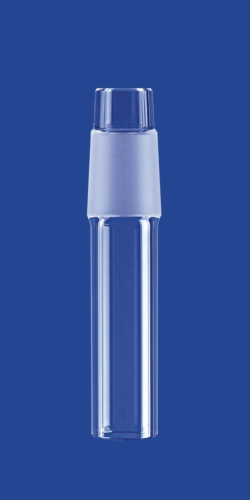

Cones with tip, DURAN® tubing

Acc. to DIN 12249 and in addition to standard.
Cones with tip, DURAN® tubing


Cones with tip, DURAN® tubing
Cone[s]Ext. Ø
mm
Length
mm
Wall thickness
mm
StandardPKCat. No.
NS7/1661151,5DIN 1224914713109
NS10/1981151,5DIN 1224916238757
NS12/21111301,5DIN 1224916072920
NS14/23131301,5DIN 1224919011545
NS19/26171301,8DIN 1224919011546
NS24/29221301,8DIN 1224919011547
NS29/32261302,0DIN 1224919011548
NS34/35301302,0DIN 1224914713110
NS40/38361452,0 16202386
NS45/40401452,3DIN 1224919011550
NS50/42461452,3 14713111
NS55/44501602,5 14713112
NS60/46541852,5DIN 1224916228071
NS71/51651853,2DIN 1224914712742
NS85/55801853,5DIN 1224914712743
Accessories:
Joint clips for conical joint sleeve connections, stainless steel, with set screw / Lenz-Laborglas
Alternate products:
Cones with tip, DURAN® tubing, with special tube dimensions / Lenz-Laborglas
Cones with drip tip, DURAN® tubing / Lenz-Laborglas
Long ground cones, DURAN® tubing / Lenz-Laborglas
