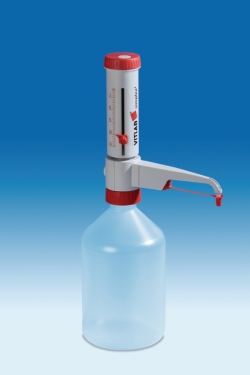

Dispensers, VITLAB^® SIMPLEX²

With variable volume and calibration mechanism.

Quick, easy and precise volume adjustment due to interior scalloped track and practical screw mechanism
No drips after tube has been capped
Easy calibration adjustment
High-quality materials (PTFE, PFA, FEP, borosilicate glass, platinum-iridium) ensure high chemical resistance aganinst most acids, solvents and bases
A positive displacement plunger with a PFA seal minimizes the crystallization of liquids and thus the clogging of the plunger
Easy to dismantle for cleaning, no tools necessary
Device can be rotated 360° on bottle
DE-M marked
With screwable discharge valve

Scope of supply:
Bottle top dispenser, thread adapter GL 25, GL 28, GL 32, GL 38, S 40 (2 - 10 ml), thread adapter GL 32, GL 38, S 40 (25 - 100 ml), telescopic filling tube, mounting tool, operation manual, quality certificate

Autoclavable:

Yes


Dispensers, VITLAB® SIMPLEX2

Dosing volume	Division ml	Accuracy ±·R%	Length suction tube mm	PK	Cat. No.
0.2 ... 2.0 ml	0.05	0,5	240	1	6283967
0.5 ... 5.0 ml	0.1	0,5	240	1	6283968
1.0 ... 10.0 ml	0.2	0,5	240	1	6283969
2.5 ... 25.0 ml	0.5	0,5	330	1	6283970
5.0 ... 50.0 ml	1	0,5	330	1	6283971
10.0 ... 100.0 ml	1	0,5	330	1	6283972
