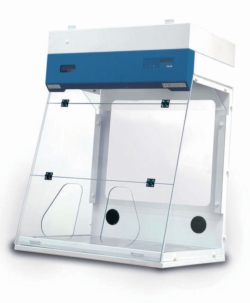

Ductless Fume Hoods Type Ascent Opti™

Compact, energy saving fume hood without ducting system.

Independently tested and complies with AFNOR NFX 15-211 standard
Average Inflow Air Velocity: 0.5m/s
Easy Filter change
Sentinel-Microprocessor with LCD-Display, air velocity alarm and 24-hour-clock
Fluorescent lighting provides superior illumination of the work zone
Sloped acrylic front window
With transparent back wall (for type SPD-4B1)
Acrylic side walls
ISOCIDE™ antimicrobial coating on all painted surfaces minimises contamination.
Stainless steel spill-retaining work top.
Sampling port
Pass-through ports in the back wall
Pre-filter made of polyester fibre, EU3 rating is included

Hood is delivered unassembled. On-site assembly can be completed in 60 mins. Without special tools.

Options on request:
Support stands, installation

For operation the main filters have to be ordered separately.

Noise level:

58 db(A)


Ductless Fume Hoods Type Ascent Opti™

Type	Ext. dim. (WxDxH)	Int. Dim. (WxDxH)	Weight kg	Rated capacity W	Power supply	PK	Cat. No.
SPD-3A1	840 x 700 x 1,125 mm	820 x 651 x 855 mm	86	60	220 ... 240 V·AC, 50 Hz , 0.5 A	1	4658853
SPD-4A1	1,140 x 700 x 1,125 mm	1,116 x 651 x 855 mm	105	88	220 ... 240 V·AC, 50 Hz , 0.6 A	1	4658854
SPD-3B1	840 x 700 x 1,125 mm	820 x 651 x 855 mm	86	60	220 ... 240 V·AC, 50 Hz , 0.5 A	1	4676173
SPD-4B1	1,140 x 700 x 1,125 mm	1,116 x 651 x 855 mm	105	88	220 ... 240 V·AC, 50 Hz , 0.6 A	1	4676174
