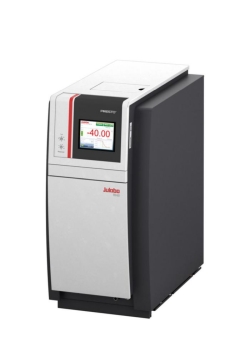

Highly dynamic temperature control systems PRESTO™, water-cooled

Highly dynamic temperature control systems suitable for high-precision, external temperature control tasks, such as reactor temperature control, material tests, or temperature simulation.

  • Space-optimised, compact design
  • Short heating and cooling times
  • Large working temperature ranges without changing heat transfer media
  • Minimized floor space due to side panels without ventilation slits
  • 5.7" TFT touch screen
  • SD card slot
  • Interfaces for USB, Ethernet, RS232, Modbus
  • Connections for alarm output, Pt100 external sensor, and standby-input
  • ICC cascade temperature control
  • Electronic level indicator
  • Integrated programmer for 8 x 60 steps
  • Class III (FL) acc. to DIN 12876-1
  • With water-cooled refrigerating machine
  • W 41, W 93, and W 93x with natural refrigerants
Max. flow rate:50 l/min
Max. delivery pressure:1.6 bar
Refrigerant:R1270
Cooling capacity at 20 °C:1,47 kW
Heating capacity:2.7 kW
Ext. dim. (WxDxH):330 x 750 x 670 mm
Power supply:230 V, 50 Hz
Weight:83 kg
IP code:IP 20
Highly dynamic temperature control systems PRESTO™, water-cooled


Highly dynamic temperature control systems PRESTO™, water-cooled
TypeTemperatureTemperature stability
°C
PKCat. No.
W 41-45 ... 250 °C±0,01 ... ±0,0514686944
Accessories:
Temperature hoses for highly dynamic temperature control systems PRESTO™, stainless steel 1.4404, triple insulation / Julabo
ProfiNet Interface / Julabo
Tempering liquids for dynamic temperature control systems PRESTO / Julabo
Alternate products:
Highly dynamic temperature control systems PRESTO™, air-cooled / Julabo
