Kern & Sohn

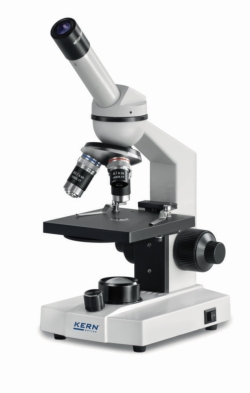

Light Microscopes Educational-Line Basic OBS

The school microscope for the first steps in microscopy and for use in biology lessons.

  • Tube 360° rotatable
  • Diopter adjustment on both sides for binocular models
  • 3 achromatic objective 4x, 10x, 40x included (60x and 100x optionally as accessoires)
  • Coaxial pre-and fine focussing
  • Simple condenser N.A. 0.65 or ABBE 1,25 N.A. condensor focussed with aperture diaphragm
  • Dimmable 0,5 W LED illumination (rechargeable)
  • Battery operation possible (OBS 101-106)


Scope of supply:
Light microscope, dust cover, manual instructions, mains adapter
Type of illumination:Transmitted light
Light type:LED
Dimensions (WxDxH):130 x 300 x 310 mm
Weight:3 kg
Plug type:EU
Battery/rechargeable battery:3 x 1.2 V, AA, NiMH
Power supply:100 ... 240 V
Warranty:2 years
Light Microscopes Educational-Line Basic OBS




Light Microscopes Educational-Line Basic OBS
TypeTubeRevolving nosepieceMagnification
objectives		Magnification
eyepieces		Inclination
angle tube		Interpupillary
distance		CondenserStage (WxD)PKCat. No.
OBS 101Monocular3-fold4x, 10x, 40xWF 10x/18 mm45° N.A. 0,65110 x 120 mm16285893
OBS 102Monocular3-fold4x, 10x, 40xWF 10x/18 mm45° N.A. 0,65110 x 120 mm14691074
OBS 103Monocular4-fold4x, 10x, 40xWF 10x/18 mm45° Abbe N.A. 1,25110 x 120 mm14691075
OBS 105Monocular4-fold4x, 10x, 40xWF 10x/18 mm45° Abbe N.A. 1,25115 x 125 mm14681238
OBS 106Binocular4-fold4x, 10x, 40xWF 10x/18 mm30°55 ... 75 mmAbbe N.A. 1,25115 x 125 mm16285895
OBS 111Monocular3-fold4x, 10x, 40xWF 10x/18 mm45° N.A. 0,65110 x 120 mm14691076
OBS 112Monocular3-fold4x, 10x, 40xWF 10x/18 mm45° N.A. 0,65110 x 120 mm14691077
OBS 113Monocular4-fold4x, 10x, 40xWF 10x/18 mm45° Abbe N.A. 1,25110 x 120 mm14691078
OBS 115Monocular4-fold4x, 10x, 40xWF 10x/18 mm45° Abbe N.A. 1,25115 x 125 mm14691079
OBS 116Binocular4-fold4x, 10x, 40xWF 10x/18 mm30°55 ... 75 mmAbbe N.A. 1,25115 x 125 mm14691080
