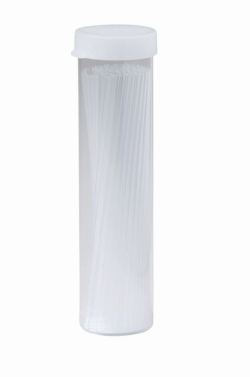

Melting point tubes

Capillary tubes for melting point analysis. Clear glass, different diameters and lengths. Special remarks are available. Other sizes on request.


Melting point tubes

Type	Outer diam. mm	Int. diam. mm	Length mm	Material	PK	Cat. No.
Sealed one end	1.00	0.80	80	Duran^®	100	9208081
Open both ends	1.00	0.80	80	Duran^®	100	9208080
Sealed one end	1.00	0.80	100	Duran^®	100	9208101
Open both ends	1.00	0.80	100	Duran^®	100	9208100
Open both ends	1.00	0.80	150	Duran^®	250	6225668
Open both ends	1.00	0.80	70	Duran^®	100	6203083
Open both ends	1.35	0.95	100	Soda glass	100	6800763
Open both ends	1.35	0.95	120	Soda glass	250	6229232
Sealed one end	1.55	1.15	75	Soda glass	100	9208076
Open both ends	1.55	1.15	80	Soda glass	100	6080736
Sealed one end	1.55	1.15	80	Soda glass	100	6055754
Sealed one end	1.35	0.95	80	Soda glass	100	6059475
Open both ends	1.35	0.95	60	Soda glass	100	6074178
Sealed one end	1.35	0.95	100	Soda glass	100	6078107
Open both ends	1.35	0.95	80	Soda glass	100	6207066
Open both ends	1.35	0.95	75	Soda glass	100	6207196
Open both ends	1.00	0.80	120	Soda glass	100	6264147
Open both ends	1.55	1.15	100	Soda glass	100	7602577

Type Sealed one end

Outer diam. 1.00mm

Int. diam. 0.80mm

Length 80mm

Material Duran^®

Cat. No. 9.208 081

Type Open both ends

Outer diam. 1.00mm

Int. diam. 0.80mm

Length 80mm

Material Duran^®

Cat. No. 9.208 080

Type Sealed one end

Outer diam. 1.00mm

Int. diam. 0.80mm

Length 100mm

Material Duran^®

Cat. No. 9.208 101

Type Open both ends

Outer diam. 1.00mm

Int. diam. 0.80mm

Length 100mm

Material Duran^®

Cat. No. 9.208 100

Type Open both ends

Outer diam. 1.00mm

Int. diam. 0.80mm

Length 150mm

Material Duran^®

Cat. No. 6.225 668

Type Open both ends

Outer diam. 1.00mm

Int. diam. 0.80mm

Length 70mm

Material Duran^®

Cat. No. 6.203 083

Type Open both ends

Outer diam. 1.35mm

Int. diam. 0.95mm

Length 100mm

Material Soda glass

Cat. No. 6.800 763

Type Open both ends

Outer diam. 1.35mm

Int. diam. 0.95mm

Length 120mm

Material Soda glass

Cat. No. 6.229 232

Type Sealed one end

Outer diam. 1.55mm

Int. diam. 1.15mm

Length 75mm

Material Soda glass

Cat. No. 9.208 076

Type Open both ends

Outer diam. 1.55mm

Int. diam. 1.15mm

Length 80mm

Material Soda glass

Cat. No. 6.080 736

Type Sealed one end

Outer diam. 1.55mm

Int. diam. 1.15mm

Length 80mm

Material Soda glass

Cat. No. 6.055 754

Type Sealed one end

Outer diam. 1.35mm

Int. diam. 0.95mm

Length 80mm

Material Soda glass

Cat. No. 6.059 475

Type Open both ends

Outer diam. 1.35mm

Int. diam. 0.95mm

Length 60mm

Material Soda glass

Cat. No. 6.074 178

Type Sealed one end

Outer diam. 1.35mm

Int. diam. 0.95mm

Length 100mm

Material Soda glass

Cat. No. 6.078 107

Type Open both ends

Outer diam. 1.35mm

Int. diam. 0.95mm

Length 80mm

Material Soda glass

Cat. No. 6.207 066

Type Open both ends

Outer diam. 1.35mm

Int. diam. 0.95mm

Length 75mm

Material Soda glass

Cat. No. 6.207 196

Type Open both ends

Outer diam. 1.00mm

Int. diam. 0.80mm

Length 120mm

Material Soda glass

Cat. No. 6.264 147

Type Open both ends

Outer diam. 1.55mm

Int. diam. 1.15mm

Length 100mm

Material Soda glass

Cat. No. 7.602 577
