Knick Elektronische

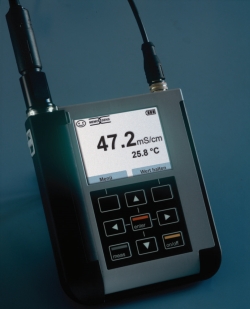

Multiparameter meter Portavo 907 Multi Cond

Portable multiparameter meter for digital pH/ORP, conductivity and oxygen sensors (Memosens), as well as an interface for analogue conductivity sensors. The powerful Li-ion rechargeable battery can be charged in the device via USB. The clear network diagram provides an at-a-glance view of the sensor condition.

Comprehensive data logger
The following logging types can be selected:
  • Manual logging
  • Time-controlled logging at a fixed interval
  • Signal-controlled logging of measured value and temperature
  • Combined time and signal-controlled logging
  • Threshold-controlled logging with pre-trigger


The data logger for up to 10000 entries records point of measurement, annotation, sensor ID, sensor serial number (Memosens), primary value, temperature, time stamp, and device status.

User-friendly software
Portavo 907 proves that a high level of functionality and easy use are not mutually exclusive. It proceeds step by step through the calibration procedure. Technical terms are clearly explained in the context-sensitive help.
  • High-resolution colour graphic display
  • Transflective and sunlight readable
  • Li-ion rechargeable battery
  • Micro USB port and Paraly SW 112 software
  • A sensor quiver protects the sensor from damage and drying out
  • The high-performance polymer housing ensures low water absorption and high impact resistance
  • Intelligent data logger with 10000 entries and graphical representation
  • Memosens sensors and analogue sensors can be used on one device
  • The mineral glass display is perfectly readable even after years
Conductivity:0.01 ... 200 µS/cm (SE 202, analogue) 1 µS/cm ... 500 mS/cm (SE 204, analogue) 0.1 µS x cm ... 200 mS x cm (2-electrode sensors, analogue) 0.1 µS x cm ... 1000 mS x cm (4-electrode sensors, analogue) 10 µS/cm ...
TDS range:0 ... 1999 mg/l
Salinity:0 ... 45 g/kg
Saturation:0 ... 1000 % (Memosens)
Partial pressure:0 ... 2000 mbar (Memosens)
Temperature:-20 ... 120 °C (NTC 30 kOhm)/-40 ... 250 °C (Pt1000)/-50 ... 250 °C (Memosens)
Interfaces:USB
Dimensions (WxDxH):132 x 156 x 30 mm
Weight:500 g
Battery/rechargeable battery:4 x AA
IP code:IP 66
Warranty:3 years
Multiparameter meter Portavo 907 Multi Cond


Multiparameter meter Portavo 907 Multi Cond
TypepH rangemV rangePKCat. No.
907 Multi Cond-2 ... 16-2000 ... 2000 (Memosens)19774717
