asecos

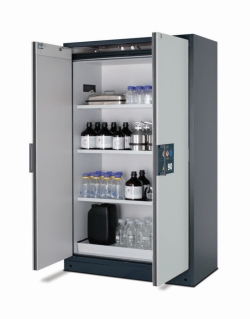

Safety storage cabinets Q-CLASSIC-90

  • Safe and approved storage of hazardous materials in workrooms
  • Type proofed according to DIN EN 14470-1, fire resistance 90 minutes
  • GS approved
  • Body made of sheet steel plastic laminated, structure finish
  • Colour: Body anthracite grey (RAL 7016) doors light grey (RAL 7035), door colour pure white (RAL 9010) available on request
  • Convenient handling with comfort, doors stop in any position, self-closing in the event of a fire
  • Doors lockable with cylinder lock (suitable for master-key system) and locking state indicator (red/green)
  • Integrated transport base, optional base cover
  • Integrated adjusting aids to compensate for uneven floor
  • Exhaust air connection (DN 75) on top of the cabinet

Height adjustable shelves (32 mm increments), load capacity 75 kg (evenly distributed load), bottom collecting sump with perforated insert as a first storage level. Capacity of the bottom collecting sump: 33 litre (cabinet width 1193 mm), 22 litre (cabinet width 599 mm)

Scope of delivery: Safety storage cabinet model Q90.195.120 or Q90.195.060 incl. interior equipment with 3 shelves, bottom collecting sump and perforated insert

Many further cabinet versions available.
Standard:DIN EN 16121/16122
Version cabinet:Tall cabinet
6.265 138




6.265 138
TypeColour bodyColour doorsExt. dim.
(WxDxH)
Int. Dim.
(WxDxH)
Weight
kg
PKCat. No.
Q90.195.120AnthraciteLight grey1,193 x 615 x 1,953 mm1,050 x 522 x 1,647 mm474.516265138
Q90.195.060AnthraciteLight grey599 x 615 x 1,953 mm450 x 522 x 1,647 mm313.516267274
Accessories:
Ventilation for asecos Safety cabinets / asecos
Plinth panels for Safety storage cabinets / asecos
