Julabo

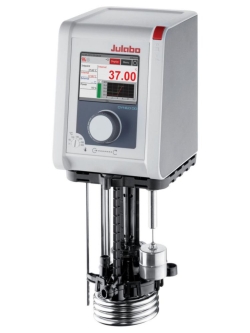

Thermoregulator DYNEO™ DD

For internal and external applications. The thermoregulators with maximum flexibility can be mounted with the sturdy bath clamp to any bath up to 50 litres.

  • Easy switching between internal and external circulation
  • Large colour TFT Display
  • Easy to operate via central controller
  • Integrated programmer for 8 x 60 program steps
  • Continuously adjustable, powerful pressure pump
  • USB interface
  • External Pt100 sensor connection
  • Class III (FL) acc. to DIN 12876-1
Max. flow rate:27 l/min
Max. delivery pressure:0.7 bar
Type of display:TFT
Dimensions (WxDxH):132 x 160 x 355 mm
Weight:2.5 kg
Heating capacity:2 kW
Power supply:200 ... 230 V, 50/60 Hz
IP code:IP 21
Thermoregulator DYNEO™ DD


Thermoregulator DYNEO™ DD
TypeTemperatureTemperature stability
°C
PKCat. No.
DD20 ... 200 °C±0,0114663220
