Fritsch

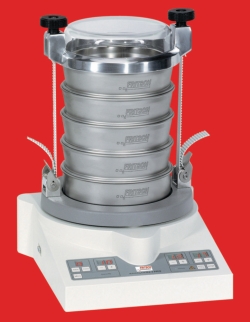

Vibratory sieve shaker ANALYSETTE 3 PRO and SPARTAN

For quantitative particle size analysis of dry samples and suspensions of all kind by dry and wet sieving with woven test sieves. FRITSCH Sieve Shakers satisfy all requirements for accurate and reproducible sieving analysis and perform automatic sieve analysis with the control and evaluation software AUTOSIEVE, which is delivered as trial version for 90 days. The top model ANALYSETTE 3 PRO guarantees absolutely reproducible sieving results due to automatic amplitude control, programme selection, can be integrated as testing device into any quality management systems, has an RS232-interface, to mention only some of its innovative and practical features.
Usable sieve diameters:100/150/200/203 mm
Max. sieve stack height:550 mm
Max. sieve stack mass:3 kg
Dimensions (WxDxH):370 x 400 x 200 mm
Weight:21 kg
Rated capacity:50 W
Plug type:EU
Power supply:100 ... 240 V, 50/60 Hz
Vibratory sieve shaker ANALYSETTE 3 PRO and SPARTAN


Vibratory sieve shaker ANALYSETTE 3 PRO and SPARTAN
TypeMeasurement rangeMax. feed quantity
g
AmplitudePKCat. No.
ANALYSETTE 3 PRO0.02 ... 63 mm20000.1 ... 3 mm19826402
ANALYSETTE 3 SPARTAN0.02 ... 63 mm20000.5 ... 3 mm19826403
Clamping lid, sieve pan and sieves must be ordered separately.
Further sieve shakers available on request.
Accessories:
Accessories for sieve shakers ANALYSETTE 3 PRO and SPARTAN, for dry sieving / Fritsch
Accessories for sieve shakers ANALYSETTE 3 PRO and SPARTAN, for wet sieving / Fritsch
