Julabo

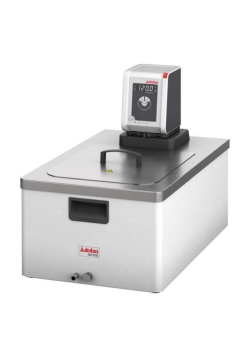

Circulator Baths, CORIO™ CD

CORIO™ CD Heating Circulators for internal and external temperature applications with stainless steel baths for working temperatures from 20 °C to 150 °C. CORIO™ Heating Circulators feature professional technology for demanding applications. These units facilitate internal temperature control in the bath tank or control of externally connected applications.
  • For internal and external applications
  • Bright, white, easy to read display
  • Very quiet
  • Pump change-over between internal and external circulation
  • USB connection
  • High-quality bath tanks made of stainless steel with bath lid and drain tap
  • Integrated cooling coil for counter-cooling
Temperature:20 ... 150 °C
Temperature stability:±0,03 °C
Max. flow rate:15 l/min
Max. delivery pressure:0.35 bar
With lid:Yes
Heating capacity:2 kW
Power supply:230 V, 50 Hz
IP code:IP 21
Circulator Baths, CORIO™ CD


Circulator Baths, CORIO™ CD
TypeVolume bathMaterial
bath
Opening (WxD)Bath
depth
mm
Ext. dim.
(WxDxH)
Weight
kg
PKCat. No.
CD-BC43 ... 4.5 lStainless steel130 x 150 mm150230 x 410 x 420 mm8.814658004
CD-BC64.5 ... 6 lStainless steel130 x 150 mm200240 x 440 x 470 mm1014658005
CD-BC128.5 ... 12 lStainless steel220 x 150 mm200330 x 490 x 470 mm12.214658006
CD-BC2619 ... 26 lStainless steel260 x 350 mm200390 x 620 x 480 mm1914658007
Accessories:
Tubing insulations for refrigerated and heating circulators / Julabo
Variable platform for heating and refrigerated circulators MAGIO™ / DYNEO™ / CORIO™ / Julabo
Lockable bath cover for heating and refrigerated circulators MAGIO™/DYNEO™/CORIO™ / Julabo
Test tube racks for heating and refrigerated circulators MAGIO™/DYNEO™/CORIO™ / Julabo
Telescopic bridges for heating and refrigerated circulators / Julabo
Temperature hoses, stainless steel 1.4404, single insulation / Julabo
