Julabo

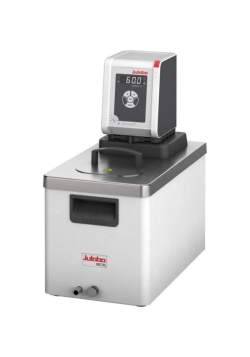

Circulator baths CORIO™ CP

With insulated stainless steel bath tanks, flexible performance and an operating temperature range of up to 200 °C. Temperature control is possible either in the internal bath or in a connected external application.

  • Suitable for internal and external applications
  • High-quality stainless steel bath vessels with bath lid and drain
  • Integrated pump connections M16 x 1
  • Integrated cooling coil for counter-cooling
  • Bright, white, easily visible display, even from a distance
  • Low-level warning system
  • Easy switching between internal and external circulation
  • Powerful, continuously variable pump
  • Pump capacity adjustable from 8 to 27 l/min
  • Very quiet
  • Rubber feet for secure standing
  • USB connection
  • RS232 interface
  • 3-point calibration
  • Class III (FL) according to DIN 12876-1


Scope of supply: Circulator bath, mains power cable, connection box, bath, bath cover, hose connectors 8 and 12 mm
Temperature:20 ... 200 °C
Temperature stability:±0,02 °C
Max. flow rate:27 l/min
Max. delivery pressure:0.7 bar
With lid:Yes
Heating capacity:2 kW
Power supply:200 ... 230 V, 50/60 Hz
Circulator baths CORIO™ CP


Circulator baths CORIO™ CP
TypeVolume bathMaterial bathOpening (WxD)Bath depth
mm
Ext. dim.
(WxDxH)
Weight
kg
PKCat. No.
CP-BC43 ... 4.5 lStainless steel130 x 150 mm150230 x 410 x 420 mm8.514669405
CP-BC64.5 ... 6 lStainless steel130 x 150 mm200240 x 440 x 470 mm1014670677
CP-BC128.5 ... 12 lStainless steel220 x 150 mm200330 x 490 x 470 mm1214670678
CP-BC2619 ... 26 lStainless steel260 x 350 mm200390 x 620 x 480 mm1914670679
Accessories:
Test tube racks for heating and refrigerated circulators MAGIO™/DYNEO™/CORIO™ / Julabo
Tubing insulations for refrigerated and heating circulators / Julabo
Lockable bath cover for heating and refrigerated circulators MAGIO™ / DYNEO™ / CORIO™ / Julabo
Telescopic bridges for heating and refrigerated circulators / Julabo
Variable platform for heating and refrigerated circulators MAGIO™ / DYNEO™ / CORIO™ / Julabo
Temperature hoses, stainless steel 1.4404, single insulation / Julabo
Temperature hoses, stainless steel 1.4404, triple insulation / Julabo
ProfiNet Interface / Julabo
