KGW Schieder

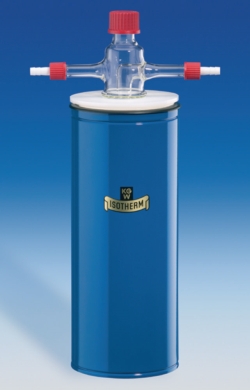

Cold traps with Dewar flask, borosilicate glass 3.3, one-piece, standard version with spout

One-piece cold trap with matching Dewar flask made of borosilicate glass 3.3 for vacuum applications. Ideal for condensing out moisture or solvents. The Dewar flasks are vacuum-insulated, silver-plated and have a blue-coated metal protective jacket with a support ring into which the cold trap is hung.
Cold traps have an additional glass thread GL 32 with screw cap as a spout.

Versions of the cold trap connections:
  • S 29 = spherical ground joint S 29
  • O 29 = spherical ground joint S 29 with O-ring seal
  • GL 18 = glass thread GL 18 with PTFE olive Ø 10 mm


Scope of supply: Cold trap, support ring, Dewar flask type 12 C

The standard assembly is designed for use with LN2 as coolant. When using CO2 and acetone please order CO2 wire basket separately.
Cold traps with Dewar flask, borosilicate glass 3.3, one-piece, standard version with spout


Cold traps with Dewar flask, borosilicate glass 3.3, one-piece, standard version with spout
TypeVolume
coolant
ml
Volume
condensate
ml
Connection
size
PKCat. No.
KF 29-K-A1000150S 2919032071
KF 29-OK-A1000150O 2919032072
KF 29-GL-A1000150GL 1819032073
Accessories:
CO2 wire baskets for cold traps with Dewar flask / KGW Schieder
Spare cold traps for cold traps with Dewar flask, borosilicate glass 3.3, one-piece, standard version with spout / KGW Schieder
