Julabo

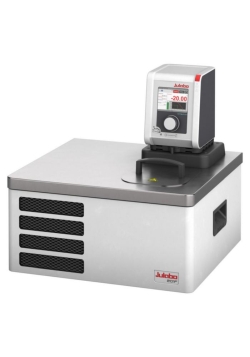

Refrigerated circulators DYNEO™ DD, with RS232 interface

Refrigerated circulators are suitable for temperature control for internal and external applications. Operation is simple and intuitive via the central rotary knob on the front of the unit.

  • 3.5" TFT colour display with multilingual user interface
  • Integrated programmer for 8 x 60 program steps
  • Easy pump switching between internal and external circulation
  • External pump connections (M16x1)
  • Infinitely adjustable pressure pump
  • USB connection
  • Space-saving cooling coil design yields more usable space in the bath tank
  • External Pt100 connection
  • Stainless steel bath tank including bath lid and drain tap
  • Removable ventilation grid
  • 2 hose olives each suitable for hose inner diameter 8 and 12 mm included
  • Class III (FL) acc. to DIN 12876-1
  • RS232 interface
Temperature stability:±0,01 °C
Max. flow rate:27 l/min
Max. delivery pressure:0.7 bar
Type of display:TFT
With lid:Yes
Heating capacity:2 kW
IP code:IP 21
Refrigerated circulators DYNEO™ DD, with RS232 interface


Refrigerated circulators DYNEO™ DD, with RS232 interface
TypeVolume bathMaterial
bath
TemperatureRefrigerantCooling
capacity at 20 °C
kW
Opening (WxD)Bath
depth
mm
Ext. dim.
(WxDxH)
Weight
kg
PKCat. No.
DD-200F.D3 ... 4 lStainless steel-20 ... 200 °CR2900,2130 x 150 mm150230 x 390 x 650 mm25.714693945
DD-310F.D3 ... 4 lStainless steel-30 ... 200 °CR2900,3130 x 150 mm150230 x 400 x 650 mm25.414685636
DD-310F.D3 ... 4 lStainless steel-30 ... 200 °CR449A0,3130 x 150 mm150230 x 400 x 650 mm25.414685639
DD-449F.D20 ... 26 lStainless steel-32 ... 200 °CR2900,44280 x 350 mm200370 x 590 x 690 mm39.514687386
DD-450F.D3 ... 4 lStainless steel-30 ... 200 °CR2900,44130 x 150 mm150230 x 400 x 650 mm27.414685642
DD-450F.D3 ... 4 lStainless steel-30 ... 200 °CR449A0,44130 x 150 mm150230 x 400 x 650 mm27.414685645
DD-800F.D5 ... 7.5 lStainless steel-40 ... 200 °CR12700,84180 x 130 mm150330 x 470 x 700 mm4214692240
DD-1200F.D5 ... 7.5 lStainless steel-50 ... 200 °CR12701,24180 x 130 mm150330 x 470 x 700 mm4414692243
DD-1201F.D48 ... 56 lStainless steel-40 ... 100 °CR12701,25350 x 400 mm300450 x 640 x 950 mm6814716005
DD-1200FW.D5 ... 7.5 lStainless steel-50 ... 200 °CR12701,24180 x 130 mm150330 x 470 x 700 mm4414693948
